Model proliferation data

Live cell population growth is modeled using the Gompertz law: $N = k e^{-e^{a-bt}}$

$k$ - Carrying capacity

$a$ - Offset for the onset of exponential growth

$b$ - Growth rate constant

import sys,os
import numpy as np
import pandas as pd
import scipy.optimize as optim
import functions
import glob
from scipy.stats import gamma
import math
import matplotlib.pyplot as plt
from matplotlib import rcParams

Specify study name and the casename (prefix for the proliferation data files). Read proliferation trajectories for all treatment times.

cwd = os.getcwd()

studyname = 'Study1'

data_directory = './data/' + studyname
os.chdir(data_directory)

casename = 'growth_'

data_files = glob.glob(casename+'*.csv')


all_files = {}
times = []

for ff in data_files:
    t = float(ff.lstrip(casename).rstrip('.csv'))
    times.append(t)
    all_files[int(t)] = ff

times.sort()

Fit proliferation data with Gompertz model and obtain the errors in parameter estimation.

p_array = np.zeros(shape=(len(data_files),10))
column_names = ['T','k','kerr1','kerr2','a','aerr1','aerr2','b','berr1','berr2']
parameters = pd.DataFrame(p_array,index=[i for i in range(0,len(data_files))],columns=column_names)

column_names = ['CT','T1','T1err1','T1err2','T2','T2err1','T2err2']
inflection_times = pd.DataFrame(np.zeros(shape=(len(data_files),7)),index=[i for i in range(0,len(data_files))],columns=column_names)

for idx in range(0,len(times)):
    t = times[idx]
    filename = all_files[int(t)]

    pop_series = pd.read_csv(filename)

    time_array = pop_series['Time (h)'].to_numpy()
    time_array = time_array.astype(float)
    time_size = time_array.shape[0]

    stack_size = time_size*(len(pop_series.columns.values)-1)

    time_stack = np.zeros(stack_size,)
    data_stack = np.zeros(stack_size,)

    time_l, data_l = [], []

    ik = 0

    n = len(pop_series.columns) - 2

    for col in pop_series.columns.values[1:]:
        this_data = pop_series[col].to_numpy()

        for p in range(0,this_data.shape[0]):
            if this_data[p]==this_data[p]:
                time_l.append(time_array[p])
                data_l.append(this_data[p])

    time_stack = np.array(time_l)
    data_stack = np.array(data_l)

    max_d = np.max(data_stack)

    max_inf_time = time_l[data_l.index(max_d)]

    m_d = max(data_l)
    t_inf = time_l[data_l.index(m_d)]

    check = 1
    iter = 0

    k_up, k_low = 2.0*m_d, 0.0
    b_up, b_low = 1.0/(time_array[1]-time_array[0]), 1.0/(time_array[-1]-time_array[0])
    a_up, a_low = max_inf_time*b_up, 0.0


    while check==1:
        all_bounds = (np.array([k_low,a_low,b_low]),np.array([k_up,a_up,b_up]))

        popt, pcov = optim.curve_fit(functions.gompertz,time_stack,data_stack,bounds=all_bounds)
        perr = np.sqrt(np.diag(pcov))

        check = 0

        iter += 1

    parameters.loc[idx,'T'] = t
    parameters.loc[idx,'k'] = popt[0]
    parameters.loc[idx,'a'] = popt[1]
    parameters.loc[idx,'b'] = popt[2]
    parameters.loc[idx,'kerr1'] = perr[0]
    parameters.loc[idx,'aerr1'] = perr[1]
    parameters.loc[idx,'berr1'] = perr[2]
    parameters.loc[idx,'kerr2'] = perr[0]
    parameters.loc[idx,'aerr2'] = perr[1]
    parameters.loc[idx,'berr2'] = perr[2]

    times_set = np.linspace(1,1000,10000)

    t1, t2 = functions.compute_gompertz_inflections(times_set,popt[0],popt[1],popt[2])

    inflection_times.loc[idx,'CT'] = t
    inflection_times.loc[idx,'T1'] = t1
    inflection_times.loc[idx,'T2'] = t2

    T1_error = t1*(abs(perr[1]/popt[1]) + abs(perr[2]/popt[2]))

    up, low = functions.get_CI(t1,T1_error)

    inflection_times.loc[idx,'T1err1'] = up
    inflection_times.loc[idx,'T1err2'] = min(low,t1)

    T2_error = t2*(abs(perr[1]/popt[1]) + abs(perr[2]/popt[2]))

    up, low = functions.get_CI(t2,T2_error)

    inflection_times.loc[idx,'T2err1'] = up
    inflection_times.loc[idx,'T2err2'] = min(low,t2)

    rate_times = np.linspace(0.0,np.max(time_array),200)
    fit_N = functions.gompertz(rate_times,popt[0],popt[1],popt[2])

    total_data = np.zeros(shape=(rate_times.shape[0],2))
    total_data[:,0] = rate_times
    total_data[:,1] = fit_N

    np.savetxt('fit_'+filename,total_data,delimiter=',')

parameters.rename(columns={'kerr1': '+','aerr1': '+', 'berr1': '+'}, inplace=True)
parameters.rename(columns={'kerr2': '-','aerr2': '-', 'berr2': '-'}, inplace=True)

inflection_times.rename(columns={'T1err1': '+','T1err2': '-'}, inplace=True)
inflection_times.rename(columns={'T2err1': '+','T2err2': '-'}, inplace=True)

parameters.to_csv('gompertz_parameter_summary.csv',index=None)
inflection_times.to_csv('gompertz_inflection_points_summary.csv',index=None)

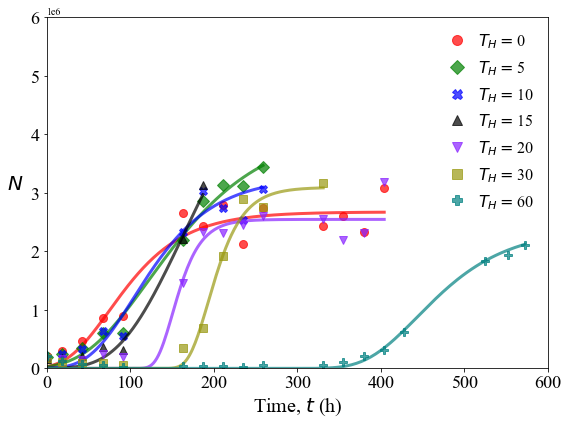

Read and plot all proliferation results.

data_files = glob.glob(casename+'*.csv')

fit_data_files = glob.glob('fit_'+casename+'*.csv')

all_files = {}
times = []

for ff in data_files:
    t = float(ff.lstrip(casename).rstrip('.csv'))
    times.append(int(t))
    all_files[int(t)] = ff

times.sort()

ori_data = []
fit_data = []

for t in times:
    ori_data.append(pd.read_csv(casename+str(t)+'.csv').to_numpy())
    fit_data.append(pd.read_csv('fit_'+casename+str(t)+'.csv',header=None).to_numpy())

fig, axs = plt.subplots(figsize=(8,6))

rcParams['font.family'] = 'sans-serif'
rcParams['font.sans-serif'] = ['Times New Roman']

color_list = ['r','g','b','#000000','#8822ff','#999911','teal','#985341']
marker_list = ['o','D','X','^','v','s','P','*']

for i in range(0,len(times)):
    c = color_list[i]
    plt.plot(ori_data[i][:,0],ori_data[i][:,1],marker=marker_list[i],ms=8,color=c,alpha=0.7,linewidth=0,label=r'$T_{H}= $'+str(times[i]))
    plt.plot(fit_data[i][:,0],fit_data[i][:,1],linewidth=3,color=c,alpha=0.7)

plt.xticks(size=18)
plt.yticks(size=18)
plt.xlabel(r'Time, $t$ (h)',size=20)
plt.ylabel(r'$N$',size=20,rotation=0,labelpad=15)
plt.xlim(0,600)
plt.ylim(0,6000000)
plt.legend(frameon=False,prop={'size': 16},markerscale=1.25,handlelength=1.0)
plt.tight_layout()

#plt.savefig(studyname+'-gompertz.png',dpi=300)

os.chdir(cwd)
